For home owners and builders planning a metal roofing construction project in Sydney and Australia, Purlin is a critical aspect. Purlin Spacing is vital as it is a determining factor for cost-effectiveness and structural integrity of your roofing project. A professional builder or am Home owner looking to build a stable roof both need to know how to calculate purlin spacing metal roof Sydney. It’s important to understand the calculation not just for economic and stability purposes but adhering to Australian Building Standard Laws.
What Are Purlins in Metal Roofing?

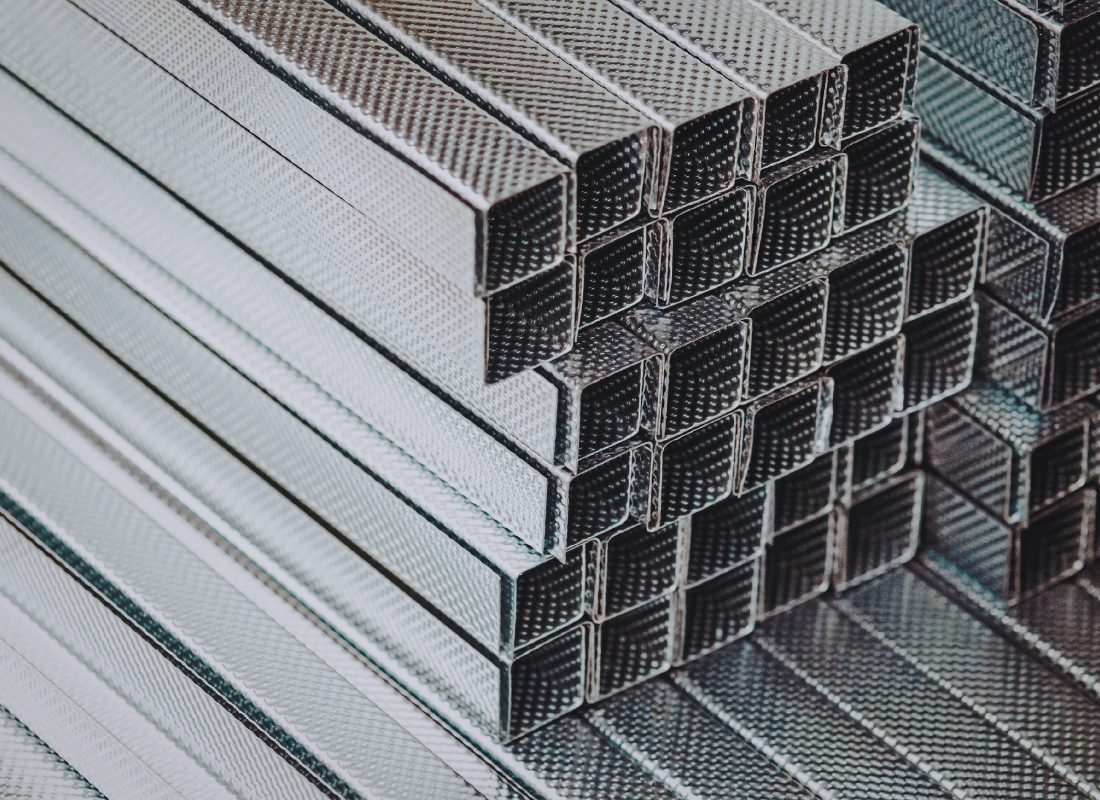

Metal roof purlins are essential support structures laid horizontally in between the primary rafters or roof trusses to hold metal roofing panels. In the Sydney and Australian building industry sector, purlins are often produced in two main types: C - Purlins and Z- Purlins. These two purlins each are designed to carry a specific amount of roof panel loads and spans.
The purlins are very valuable for metal panel based roofing systems as they transfer the load or weight of panels to the building's main structural framework.Understanding the functions served by Purlin is very crucial for Builders and home owners in Australia and Sydney due to varying weather conditions of storms and summer heat.
Why do you need to properly manage Purlin Spacing?
Purlin Spacing is critical and needs proper management, improper spacing can mean the roof collapsing on its own with just a touch or a light rain storm. Additionally, improper purlin spacing means the heat is not properly transmitted and it heats your basement, home or your structure. Some reasons why Purlin Spacing is important is provided in table for an easy read:
|
S.N. |
Importance |
Reason |
|
1. |
Structural Safety |
Inadequate spacing can lead to roof panel sagging, water pooling, and potentially catastrophic failure during extreme weather events common in NSW. |
|
2. |
Cost Optimization |
Over-engineering with excessive purlins wastes materials and labor, while under-engineering compromises safety and longevity. |
|
3. |
Code Compliance |
Sydney building regulations require adherence to Australian standards, making proper spacing calculations mandatory for approval and insurance purposes. |
|
4. |
Roof Performance |
Proper spacing ensures optimal load distribution, preventing premature wear and maintaining the roof's weatherproofing capabilities. |
How Do You Calculate Purlin Spacing for Your Metal Roof?
Now that you know, the importance of calculating and adhering to Purlin Spacing guideline, let’s know how to calculate the Purlin Spacing for your metal panel roofs:
|
S.N. |
Steps |
Process |
|
1. |
Determine Your Roof Loads |
Calculate the overall load of roof:
|
|
2. |
Enquire Manufacturer Specification |
Calculate the Span capability:
|
|
3. |
Consider Safety Factors |
Ensuring safety is reliant on:
|
|
4. |
Account Local Climate |
Installing roof and purlin is dependent on climate. For example cost city like Sydney requires following:
|
Purlin Spacing Reference Table
It’s essential to refer to a Purlin Spacing Table to calculate the Purlin Spacing for metal roof. A Table of the general spacing is attached here to help you calculate the load cost and other factor for Reference:
|
S.N. |
Purlin Size (mm) |
Maximum Span (mm) |
Recommended Spacing (mm) |
Load Capacity (kPa) |
Suitable Applications |
|
1. |
102 x 55 C-Section |
1200 |
1000–1200 |
2.5 |
Light residential |
|
2. |
152 x 51 C-Section |
1800 |
1200–1500 |
3.5 |
Standard residential |
|
3. |
203 x 64 C-Section |
2400 |
1500–1800 |
5.0 |
Heavy residential/light commercial |
|
4. |
152 x 65 Z-Section |
1800 |
1200–1500 |
3.5 |
Standard residential |
|
5. |
203 x 76 Z-Section |
2400 |
1500–1800 |
5.0 |
Heavy residential/commercial |
|
6. |
254 x 76 Z-Section |
3000 |
1800–2100 |
6.5 |
Commercial/industrial |
Note: These values are for reference only. Always consult with a structural engineer and refer to current Australian Standards AS/NZS 4600 for specific project requirements or our rep team at Austrian Steels.
Easy method to Calculate Purling spacing For a Metal Roof
The easiest formula to calculate purling spacing is to:
-
Get the roof panel’s span table like the average one provided above from the manufacturer.
-
Determine the design loads roof panel needs to hold (snow, wind, dead, live) per local government requiement
-
Choose a purlin size and spacing which meets or exceeds weather condition loads and structure loads
-
Factor in roof pitch and span.
-
Consult with a structural engineer for non-standard or high-load projects
-
Never exceed manufacturer’s maximum recommended spacing especially for high-risk areas, reduce spacing for extra safety margin.
Conclusion
Proper purlin spacing calculation is very critical to successful metal roofing installing projects. With knowledge of load requirements, consultation of manufacturer specifications, and adherence to Australian standards, home owners and builders can ensure a safe, cost-effective, and long-lasting roofing system.
For guides on home building or calculation and installing Purlin spacing in your home across Sydney and Australia, contact us.
