Choosing the right thickness of aluminium checker plate is vital for your project’s success. It doesn’t matter if you’re kitting out a ute tray, laying down factory floors, or building a walkway - getting the gauge right is everything. If you go too thin, the plate is going to bow, dent, or buckle the moment it takes a hit. Go too thick, though, and it’s just overkill; you’re essentially burning budget on heavy material you don’t actually need. The optimal thickness selection depends on the intended application and expected weight loads.
Common Industrial Uses of Aluminium Checker Plate

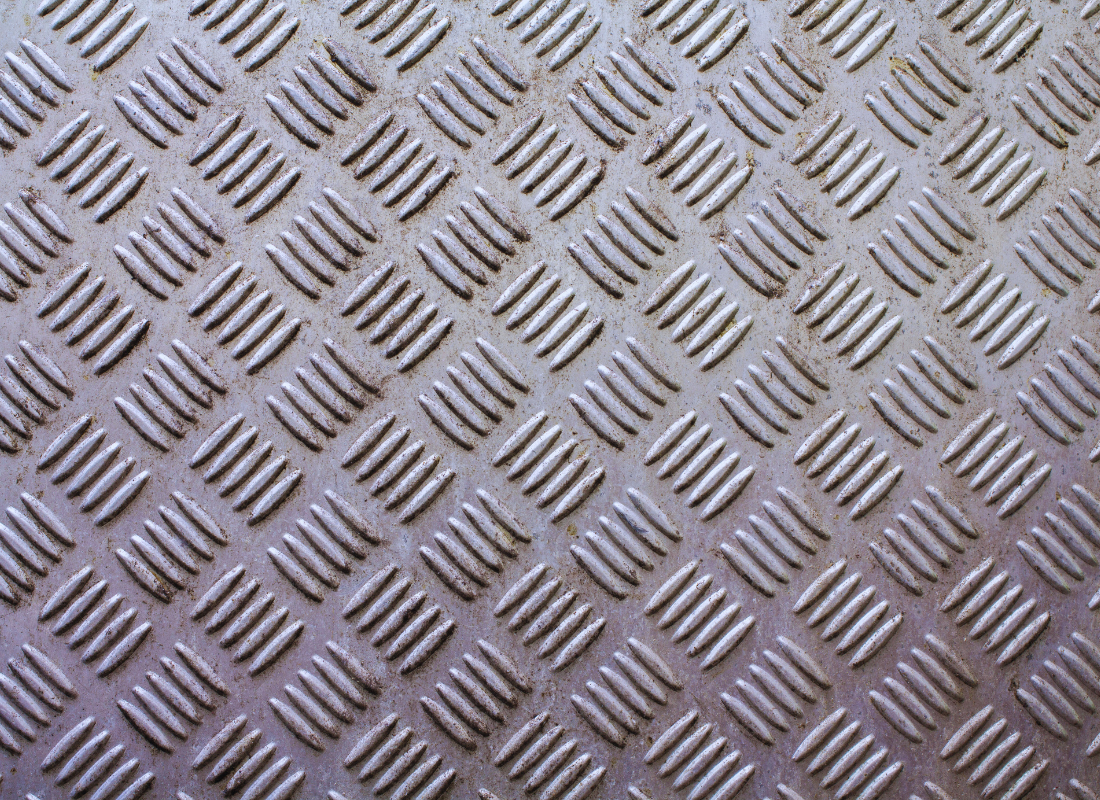

Aluminium tread plate serves as a versatile material across numerous industries. The distinctive raised pattern–typically five-bar design–provides exceptional grip whilst the aluminium base offers strength without excessive weight.
Industrial facilities commonly feature this material in various applications. Workers require secure footing on flooring surfaces. Maintenance crews access machinery platforms regularly. Transport vehicles utilise it for equipment hauling. The material's versatility stems from three key properties: slip resistance when wet, substantial weight capacity, and corrosion resistance in harsh environments.
Manufacturing facilities implement it for equipment access areas. Transport companies install it in vehicle beds for continuous cargo handling. Commercial kitchens apply it in spill-prone zones. Any surface requiring both safety and durability benefits from checker plate installation.
Factory and Warehouse Flooring
Warehouse and factory flooring experiences significant wear. Forklifts traverse surfaces thousands of times. Workers maintain daily foot traffic. Heavy pallets create impact loads. Load bearing aluminium plate demonstrates its value in these demanding environments.
Standard foot traffic areas perform adequately with 2mm thickness. Forklift operations necessitate upgrading to 3mm minimum thickness. Heavy-duty zones featuring constant vehicle movement or extremely heavy material storage often require 4mm or 5mm thickness to prevent long-term sagging.
The underlying support structure holds equal importance to plate thickness. Proper support beam spacing–typically maximum 500mm intervals for 3mm plate–ensures even load distribution and maintains surface levelness under stress.
Truck and Ute Trays
Ute trays and truck beds present distinctive challenges. Checker plate must accommodate dynamic loads–shifting weight during transport, road vibrations, and occasional cargo impact. Vehicle beds experience constant flexing and movement, unlike static flooring applications.
Light-duty utes carrying tools and equipment perform satisfactorily with 1.6mm checker plate. These thinner options minimise tray weight whilst providing adequate protection and grip. Trade utes handling heavier daily loads require 2mm minimum thickness.
Heavy-duty truck beds transporting machinery, building materials, and the industrial equipment require the sturdier 3mm thickness. Extreme applications may warrant 4mm thickness. Whilst thicker plate increases vehicle weight, this proves preferable to tray floor buckling under heavy loads during operation.
Industrial Staircases and Ramps
Industrial staircases and ramps must meet specific safety standards whilst handling continuous workday foot traffic. The checker plate's anti-slip surface proves critical–stair slips can result in serious workplace injuries.
Light commercial stair treads function adequately with 2mm thickness. Industrial stairs experiencing heavier traffic should utilise 3mm thickness. The raised pattern maintains worker grip even when surfaces are wet from rain or cleaning operations.
Ramps face different stresses compared to staircases. Vehicle ramps for loading docks or workshops require thicker material–3mm minimum, with 4mm recommended for frequent heavy vehicle use. Ramp angle and support span influence thickness requirements. Steeper ramps or longer unsupported spans demand thicker material to prevent structural bowing.
Machinery Platforms and Walkways
Machinery areas require stable platforms for maintenance, operation, and inspection activities. These elevated walkways often span considerable distances between support points, directly affecting required plate thickness.
Short spans under 300mm between supports function adequately with 2mm plate for foot traffic. Spans extending to 500mm require 3mm minimum thickness. Platforms spanning 800mm or more between beams should utilise 4mm thickness to avoid noticeable flexing during use.
Some machinery platforms must support equipment weight–toolboxes, temporary materials, or small machinery during maintenance operations. These scenarios require calculating expected loads and incorporating safety margins. Installing thicker plate initially proves more cost-effective than subsequent reinforcement or replacement of sagging platforms.
Wall and Door Protection Panels
Not all aluminium checker plate applications involve load-bearing functions. Walls, doors, and kick plates in high-traffic areas serve protective rather than structural purposes. These applications permit thinner, lighter material selection.
1.6mm checker plate performs wall protection duties effectively. It shields underlying surfaces from trolleys, equipment, and general impacts without adding excessive structural weight. The raised pattern provides an industrial aesthetic many businesses prefer.
Door kick plates typically utilise 1.6mm or 2mm thickness depending on door size and expected impact. Loading dock doors experiencing pallet jack impacts require thicker options. Workshop office doors function adequately with 1.6mm thickness.
Advantages of Aluminium Checker Plate for Industries
There’s a reason Aluminium diamond plate is the standard for so many industrial jobs. It simply brings things to the table that other materials can’t match.
-
Strength-to-Weight Ratio: Aluminium gives you serious structural integrity while weighing about a third of what steel does. If you are fitting out a vehicle, this is huge. Every kilo you save on the tray is a kilo you can use for payload or fuel savings. A 3mm aluminium floor will take a beating just like steel, but it won't weigh your vehicle down.
-
Corrosion Resistance: Unlike steel, there’s no need of galvanising or constant painting to stop Aluminium from rotting, aluminium has self defense. It naturally forms a protective oxide coating. Whether it’s facing salt spray or just bad weather, it holds up for years without you needing to babysit it..
-
Low Maintenance: Once it’s fixed and installed, the aluminium checker plate requires zero to no maintenance. A quick periodic wash is enough to remove the grimes that coagulate. Zero rust treatment, no repainting, and no protective coatings is necessary. It dramatically saves on long-term maintenance costs against the other market alternatives.
-
Non-Slip Safety: That raised pattern isn't just for looks; it provides critical traction. In workshops where oil spills or wet weather are factors, that extra grip helps keep your crew upright and stops nasty falls.
-
Easy Fabrication: Ask any fabricator - they prefer cutting and drilling aluminium over steel any day. It’s easier to shape and install, meaning you can get custom fits without needing heavy industrial gear.
Maintenance Tips
Even though aluminium’s tougher and sturdier, regular maintenance and a little investment in care takes it a long way.
-
Regular Cleaning: Grease and grime stick and clog the whole tread pattern -ultimately killing the grips. Giving it a scrub with mild soap and water, once in a while keeps it safe.
-
Avoid Harsh Chemicals: Don’t go throwing strong acids or heavy alkaline cleaners on it. They can eat into that protective layer I mentioned earlier. Always Stick and use the neutral cleaners - ones with neutral ph labels. Rather than choosing tough and harsh chemical, always rinse tough stains multiple times.
-
Inspect for Damage: Give the checker plates some time and quick look every now and then. If you see any sagging or bellying in the plates, it’s often a sign that the sheet’s gotten a bit too light for the job or the supports underneath are spaced too wide. Knowing and figuring out such sort of thing early saves you a massive problem and hefty bills in the future.
-
Check Fasteners: Vibration loosens everything eventually. If you’ve bolted or riveted the plate down, give them a quick check every few months. You don't want things rattling loose.
-
Address Corrosion Promptly: Aluminium is durable and sturdy, yet it is not invincible. If you catch a white powder starting to form - understand it’s oxidation. It usually happens if the plate is touching a different metal (like steel supports) or got hit with bad chemicals. Clean it up and separate the metals if you can.
End Notes
At Austrina Steels, we stock aluminium checker plate in mill finish ranging from 1.6mm to 3mm thickness with the popular five-bar pattern. We’ve got the gear for pretty much any job, from custom vehicle trays to heavy industrial flooring. If you’re stuck on which gauge is actually right for you, don’t guess - just ask. We can look at exactly what you’re planning to load up and point you in the right direction. Nailing the specs now saves you cash in the long run and ensures the build lasts.
